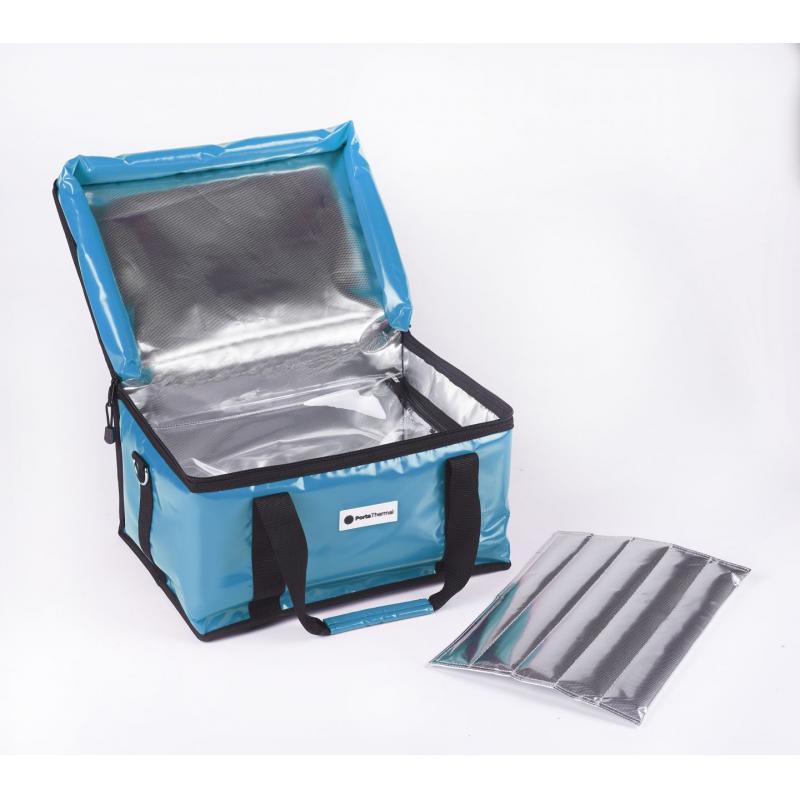

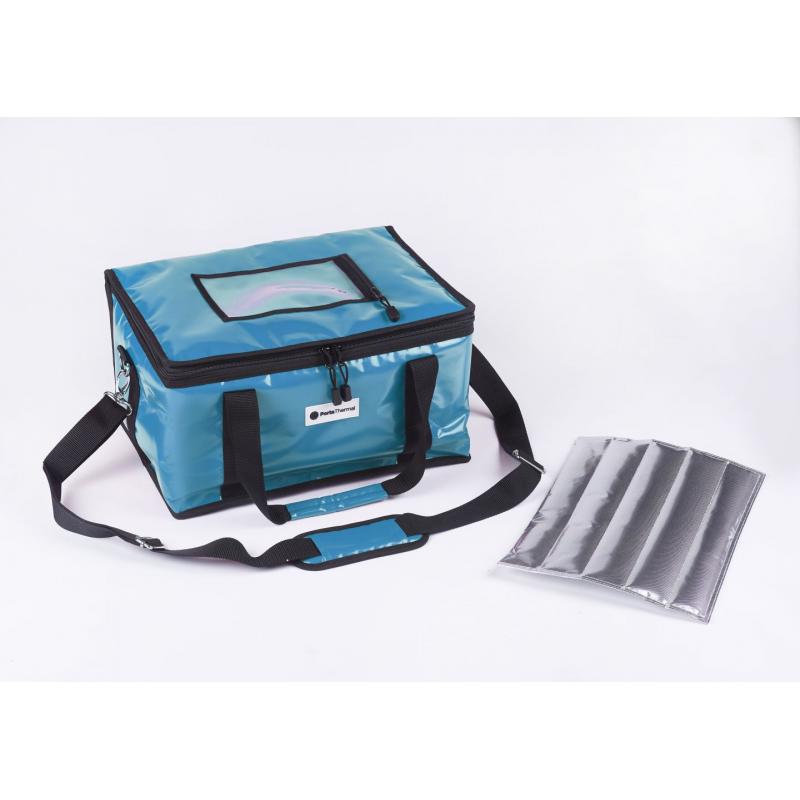

10 litre Small Cold Chain / Vaccine Transportation Bag

Small Cold Chain/ Vaccine Transportation Bag.

A lightweight medical cool bag designed for the transportation of chilled products and extending the time between 2-8°C. With a new design, the vaccine bag designs bring improvements on durability, infection control properties, insulation and handling.

10 litre sized bags are ideal for transporting cold chain items short distances, such as between wards or clinics or for short community visits. The bag features a double padded hand grip and padded shoulder strap that can be adjusted or removed.

With quality metal fittings, thick insulation pillow and 1 thermal separator, contents in this bag will remain protected whilst travelling. The bag is made from 250D tarpaulin for extra durability that is wipe clean, waterproof, antibacterial. The bag is secured with two zips that can be locked together with barcoded or numbered tamper-resistant seals for added assurance.

Design

The new design of this bag switches velcro for clips for easier cleaning. Insulation is improved with the addition of an internal zip flap to prevent cool air from releasing. A clear internal lid with a hand slip in sleeve gives the access you need whilst minimising the impact of the bag’s temperature. An external compartment has also been added where a data logger can be securely stored and is transparent for easy reading.

On the bag, there’s a large clear window where information regarding contents information or delivery address can be displayed.

Extensive Independent testing has been conducted and full reports are available upon request.
Tests show contents remain below 8°C for up to 3hrs 40 minutes when no coolant used. We always advise using coolant to extend cold chain timings, 4 small blocks and 4 gels. It should be noted that time contents remain below 8°C will vary depending on the load, ambient temperature, quantity and positioning of the coolant and temperature of contents when loaded. It is always advised to use a data logger to continually measure the temperature of contents.

Dimensions

This bag is ideal for all medications and vaccines that need to stay cool whilst travelling.

Internal Dimensions: W395 x D255 x H170mm

External Dimensions: W410 x D280 x H220mm

Insulation Thickness: 45mm

Estimated Capacity: 80 HPV bags – without use of gel packs or coolants
